Intro
I hope the last few articles were helpful to start a new journey with OLVM
(Oracle Linux Virtual Manager). As we configured the KVM on the OLVM environment the next step is to configure the storage domain. VMs disks and snapshots are stored
under storage domains.

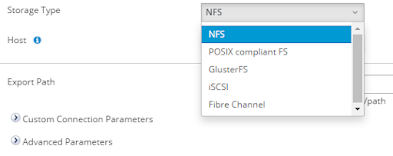

OLVM supports 4 types of storage types.
- NFS
- POSIX compliant fs
- GlusterFS
- iSCASI
- Fiber Channel
What is the Storage domain?
A storage domain is a collection of images that have a common storage
interface. A storage domain contains complete images of templates, virtual
machines, virtual machine snapshots, or ISO files. Oracle Linux
Virtualization Manager supports storage domains that are block devices (SAN
- iSCSI or FCP) or a file system (NAS - NFS or Gluster).
Last few decades SAN technologies have improved drastically. There are many
redundancy mechanisms like mirroring, RAID 5, RAID 6, and RAID 6 +1 to
achieve data redundancy. To achieve 2 layers of data redundancy we can
use the distributed file system. GlusterFS is an OLVM support cluster
distributed file system. GlusterFS has the feature of creating replicated volumes for
distributed databases.
What is GlusterFS?
GlusterFS is a distributed file system defined to be used in user space,
i.e. File System in User Space (FUSE). It is a software-based file system
that accounts for its own flexibility feature.
Figure 1: Gluster FS hierarchical model
The error you will face while configuring the GFS data domain.
I have listed the benefits that come with GlusterFS.
- Innovation - It eliminates the metadata and can dramatically improve the performance which will help us to unify data and objects.
- Elasticity - Adapted to growth and reduction of the size of the data.
- Scale Linearly - It has the scalability to petabytes and beyond.
- Simplicity - It is easy to manage and independent from the kernel while running in user space.
Refer https://www.tecmint.com/introduction-to-glusterfs-file-system-and-installation-on-rhelcentos-and-fedora/ link the get more understanding of the GFS.
In this article, we will focus on configuring the GlusterFS replicated
volumes and how to integrate this with OLVM. For this configuration,
we are going to use KVM hosts as the Gluster FS server and the
client. Also shared oracle documentation for configuration Glusterfs.
https://docs.oracle.com/en/learn/gluster-oracle-linux/index.html#create-the-trusted-storage-pool
Let's start with installing the GFS server rpms.
Installed required RPMs
We need to install glusterfs server rpm to enable the gluster server services.
## Enable access to the Gluster packages
sudo dnf install oracle-gluster-release-el8 -y
sudo dnf config-manager --enable ol8_gluster_appstream ol8_baseos_latest ol8_appstream
## Install the Gluster server packages.
sudo dnf install @glusterfs/server -y
Enable the GFS services
Once the GFS server RPMs installation is complete enable the gluster services and add gfs service to the firewall rule.
sudo systemctl enable --now glusterd
Configure the firewall to allow traffic on the ports that are specifically used by Gluster.
sudo firewall-cmd --permanent --add-service=glusterfs
sudo firewall-cmd --reload
Configure block device for GFS
We need to create a partition and make XFS file system for GFS bricks. Make sure not to write anything directly on the brick.
$ sudo fdisk /dev/mapper/3624a93701561d6718da94a2000011014
$ sudo mkfs.xfs -f -i size=512 -L glusterfs /dev/mapper/3624a93701561d6718da94a2000011014p1
$ sudo mkdir -p /nodirectwritedata/glusterfs/brick1
$ sudo echo 'LABEL=glusterfs /nodirectwritedata/glusterfs/brick1 xfs defaults 0 0' >> /etc/fstab
$ mount -a
$ sudo mkdir /nodirectwritedata/glusterfs/brick1/gvol0
$ df -H
This is how it looks after adding the disk from the SAN. Make sure disks are not shared among both the KVM servers.
[root@KVM01 ~]# lsblk
NAME MAJ:MIN RM SIZE RO TYPE MOUNTPOINT
sda 8:0 0 59.6G 0 disk
├─sda1 8:1 0 4G 0 part
│ └─md127 9:127 0 4G 0 raid1 [SWAP]
├─sda2 8:2 0 2G 0 part
│ └─md125 9:125 0 2G 0 raid1 /boot/efi
└─sda3 8:3 0 53.6G 0 part
└─md126 9:126 0 53.6G 0 raid1 /
sdb 8:16 0 59.6G 0 disk
├─sdb1 8:17 0 4G 0 part
│ └─md127 9:127 0 4G 0 raid1 [SWAP]
├─sdb2 8:18 0 2G 0 part
│ └─md125 9:125 0 2G 0 raid1 /boot/efi
└─sdb3 8:19 0 53.6G 0 part
└─md126 9:126 0 53.6G 0 raid1 /
sdc 8:32 1 14.4G 0 disk
└─sdc1 8:33 1 14.4G 0 part
sdd 8:48 0 2T 0 disk
└─3624a93701561d6718da94a2000011014 252:0 0 2T 0 mpath
sdf 8:80 0 2T 0 disk
└─3624a93701561d6718da94a2000011014 252:0 0 2T 0 mpath
sdh 8:112 0 2T 0 disk
└─3624a93701561d6718da94a2000011014 252:0 0 2T 0 mpath
sdi 8:128 0 2T 0 disk
└─3624a93701561d6718da94a2000011014 252:0 0 2T 0 mpath
[root@KVM01 ~]#
I would recommend it's better to create LVM, which gives to flexibility to expand the disk later for future space requirements.
fdisk /dev/mapper/3624a93701561d6718da94a2000011014
-- n -- create new partition
-- t -- set 8e for LVM
-- w -- save and exit
Expected output after formatting disk with xfs file system and mounting the data :
[root@KVM01 brick1]# mkfs.xfs -f -i size=512 -L glusterfs /dev/mapper/GFS_PROD_VG-GFS_PROD_LV
meta-data=/dev/mapper/GFS_PROD_VG-GFS_PROD_LV isize=512 agcount=4, agsize=120796160 blks
= sectsz=512 attr=2, projid32bit=1
= crc=1 finobt=1, sparse=1, rmapbt=0
= reflink=1 bigtime=0 inobtcount=0
data = bsize=4096 blocks=483184640, imaxpct=5
= sunit=0 swidth=0 blks
naming =version 2 bsize=4096 ascii-ci=0, ftype=1
log =internal log bsize=4096 blocks=235930, version=2
= sectsz=512 sunit=0 blks, lazy-count=1
realtime =none extsz=4096 blocks=0, rtextents=0
Discarding blocks...Done.
[root@KVM01 brick1]#
-- After mounting brick
[root@KVM01 brick1]# df -h
Filesystem Size Used Avail Use% Mounted on
devtmpfs 377G 0 377G 0% /dev
tmpfs 378G 12K 378G 1% /dev/shm
tmpfs 378G 11M 378G 1% /run
tmpfs 378G 0 378G 0% /sys/fs/cgroup
/dev/md126 53G 7.4G 43G 15% /
/dev/mapper/3624a93701561d6718da94a2000011014p1 2.0T 15G 2.0T 1% /nodirectwritedata/glusterfs/brick1
/dev/md125 2.0G 5.1M 2.0G 1% /boot/efi
tmpfs 76G 16K 76G 1% /run/user/42
tmpfs 76G 4.0K 76G 1% /run/user/1000
Discovery the GFS Peer
As we have already installed the GFS server RPMs , now we can discover the GFS peer using gluster peer probe command.
-- Execute Peer probe on both the nodes
[root@KVM10 zones]# gluster peer probe KVM01.local.ca
peer probe: success
[root@KVM120 zones]#
[root@KVM01 ~]# gluster pool list
UUID Hostname State
b744a4e1-fd30-4caa-b4ac-db9fd22cb4c3 KVM01.local.ca Connected
9a5d68c4-6ca2-459f-a1eb-110225b393a1 localhost Connected
[root@KVM01 ~]#
[root@KVM02 ~]# gluster pool list
UUID Hostname State
9a5d68c4-6ca2-459f-a1eb-110225b393a1 KVM02.local.ca Connected
b744a4e1-fd30-4caa-b4ac-db9fd22cb4c3 localhost Connected
[root@KVM02 ~]#
Configure GFS Volume
Next step is to create replicated volume for GFS "gluster volume create gvol0 replica 2 KVM01:/nodirectwritedata/glusterfs/brick1/gvol0 KVM02:/nodirectwritedata/glusterfs/brick2/gvol0"
# gluster volume create gvol0 replica 2 KVM01:/nodirectwritedata/glusterfs/brick1/gvol0 KVM02:/nodirectwritedata/glusterfs/brick2/gvol0
[root@KVM01 ~]# gluster volume create gvol0 replica 2 KVM120:/nodirectwritedata/glusterfs/brick1/gvol0 KVM121:/nodirectwritedata/glusterfs/brick2/gvol0
Replica 2 volumes are prone to split-brain. Use Arbiter or Replica 3 to avoid this. See: http://docs.gluster.org/en/latest/Administrator%20Guide/Split%20brain%20and%20ways%20to%20deal%20with%20it/.
Do you still want to continue?
(y/n) y
volume create: gvol0: success: please start the volume to access data
Now we need to start the volume gvol0.
-- Start the Volume
gluster volume start gvol0
-- Validate the volume status
[root@KVM01 ~]# gluster volume info
Volume Name: gvol0
Type: Replicate
Volume ID: da22b70e-7929-41d3-95f1-542e2220b10a
Status: Started
Snapshot Count: 0
Number of Bricks: 1 x 2 = 2
Transport-type: tcp
Bricks:
Brick1: KVM01:/nodirectwritedata/glusterfs/brick1/gvol0
Brick2: KVM02:/nodirectwritedata/glusterfs/brick2/gvol0
Options Reconfigured:
storage.fips-mode-rchecksum: on
transport.address-family: inet
nfs.disable: on
performance.client-io-threads: off
[root@KVM121 ~]# gluster volume status
Status of volume: gvol0
Gluster process TCP Port RDMA Port Online Pid
------------------------------------------------------------------------------
Brick KVM01:/nodirectwritedata/glusterfs/b
rick1/gvol0 49152 0 Y 7208
Brick KVM02:/nodirectwritedata/glusterfs/b
rick2/gvol0 49152 0 Y 7197
Self-heal Daemon on localhost N/A N/A Y 7214
Self-heal Daemon on KVM120 N/A N/A Y 7225
Task Status of Volume gvol0
------------------------------------------------------------------------------
There are no active volume tasks
[root@KVM01 ~]#
Configure the GFS data domain in OLVM
GFS volume creation is complete, the next big step is to integrate GFS volume with OLVM. If you have two KVM hosts, I would recommend you mount this using localhost:/gvol0. This enables you to mount the same volume on both the servers and the VM disk image will replicate on both sites.
Issue during the data domain configuration
Solution
In OLVM files should be owned by vdsm and kvm. In this case, navigate the volume folder in brick and change the ownership to vdsm:kvm and change permission to 775.cd /nodirectwritedata/glusterfs/brick1/
chown -R 36:36 gvol0
chmod -R 775 gvol0
cd /nodirectwritedata/glusterfs/brick2/
chown -R 36:36 gvol0
chmod -R 775 gvol0
Once this is complete this will be mounted in green color :)
Final output
This should be marked with green color status Also this will OLVM to start the data center. you cannot start the data center without a data domain.
Conclusion
Storage technologies are changing at a rapid pace. Having a distributed file system on top of the storage technology (RAID6+1) makes data more redundant and secure. At the moment OLVM supports only GlusterFS as the distributed file system you do not require additional licenses for this cluster file system. Also, this is very easy to configure and it gives high storage throughput by eliminating the metadata read, even IOPS can be improved by adding more brinks for the GFS.
Next article I will cover VM creation from the ova template.
