Intro
Most organizations choose VMware as their virtual platform market leader. But it’s safe to say that Oracle licensing is not very VMware-friendly. You are generally required to license every core of every server in the cluster. This means not only licensing all the cores on the server you are running the VM (Virtual Machine) on, but all the cores on any server that the VM could potentially be migrated to (think vMotion).
The best way to overcome this licensing issue is by creating hard partitions. The partition will help to segment the CPU core as per your core license.
What is partitioning?
“Partitioning” occurs when the CPUs on a server are separated into individual sections where each section acts as a separate system. Sometimes this is called “segmenting.” There are many hardware and software virtualization technologies available that deliver partitioning capabilities, with varying degrees of resource allocation flexibility.
There are two types of partitions
- Soft partition
- Hard partition
Soft partition :
Soft partitioning segments the operating system using OS resource managers. The operating system limits the number of CPUs where an Oracle database is running by creating areas where CPU resources are allocated to applications within the same operating system. This is a flexible way of managing data processing resources since the CPU capacity can be changed fairly easily, as an additional resource is needed.
Hard partition :
Hard partitioning physically segments a server, by taking a single large server and separating it into distinct smaller systems. Each separated system acts as a physically independent, self-contained server, typically with its own CPUs, operating system, separate boot area, memory, input/output subsystem, and network resources.
For more details refer : https://www.oracle.com/a/ocom/docs/linux/ol-kvm-hard-partitioning.pdf

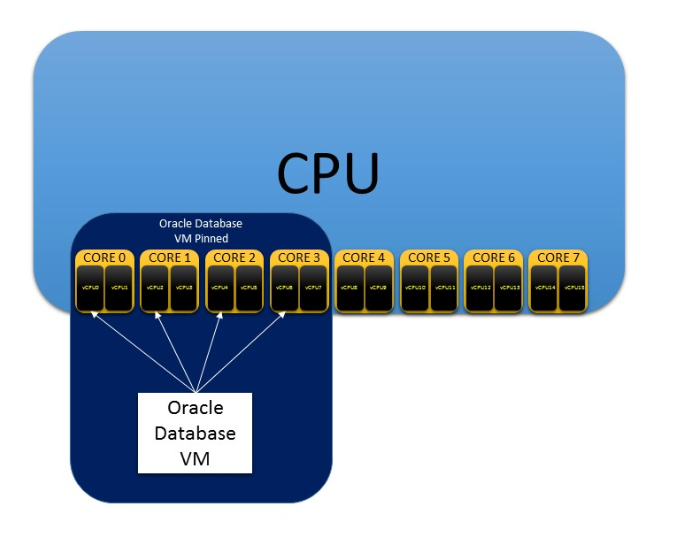

Figure 2: Correct way of pinning vcpu's
It's important to know just because we pinned the Vcpus, there is no guarantee that other VMs cant use those very same VCPUs . Assume that we have pinned and non-pinned VMs, the non-pinned VMs could potentially stray onto the pinned VMs' VCPUs and caused unintended performance issues. To avoid this, pin the database VM to its VCPUs and then pin all other VMs to the remaining VCPUs to segregate them.
Here is the proper way to perform this pinning :
In this article, I will illustrate how to perform hard partitioning.
####### lscpu
[root@KVM120 ~]# lscpu
Architecture: x86_64
CPU op-mode(s): 32-bit, 64-bit
Byte Order: Little Endian
CPU(s): 64
On-line CPU(s) list: 0-63
Thread(s) per core: 2
Core(s) per socket: 16
Socket(s): 2
NUMA node(s): 2
Vendor ID: GenuineIntel
BIOS Vendor ID: Intel(R) Corporation
CPU family: 6
Model: 85
Model name: Intel(R) Xeon(R) Gold 6226R CPU @ 2.90GHz
BIOS Model name: Intel(R) Xeon(R) Gold 6226R CPU @ 2.90GHz
Stepping: 7
CPU MHz: 1199.909
BogoMIPS: 5800.00
Virtualization: VT-x
L1d cache: 32K
L1i cache: 32K
L2 cache: 1024K
L3 cache: 22528K
NUMA node0 CPU(s): 0-15,32-47
NUMA node1 CPU(s): 16-31,48-63
Flags: fpu vme de pse tsc msr pae mce cx8 apic sep mtrr pge mca cmov pat pse36 clflush dts acpi mmx fxsr sse sse2 ss ht tm pbe syscall nx pdpe1gb rdtscp lm constant_tsc art arch_perfmon pebs bts rep_good nopl xtopology nonstop_tsc cpuid aperfmperf pni pclmulqdq dtes64 monitor ds_cpl vmx smx est tm2 ssse3 sdbg fma cx16 xtpr pdcm pcid dca sse4_1 sse4_2 x2apic movbe popcnt tsc_deadline_timer aes xsave avx f16c rdrand lahf_lm abm 3dnowprefetch cpuid_fault epb cat_l3 cdp_l3 invpcid_single intel_ppin ssbd mba ibrs ibpb stibp ibrs_enhanced tpr_shadow vnmi flexpriority ept vpid ept_ad fsgsbase tsc_adjust bmi1 avx2 smep bmi2 erms invpcid cqm mpx rdt_a avx512f avx512dq rdseed adx smap clflushopt clwb intel_pt avx512cd avx512bw avx512vl xsaveopt xsavec xgetbv1 xsaves cqm_llc cqm_occup_llc cqm_mbm_total cqm_mbm_local dtherm ida arat pln pts hwp_epp pku ospke avx512_vnni md_clear flush_l1d arch_capabilities
[root@KVM120 ~]#
Understand the current CPU on the hypervisor
On a server running Oracle Linux KVM, you can run the lscpu command to print out the basic CPU configuration of the server hardware. As per this current architecture, we have 6 CPU's and cpu numbering starting with 0.
#### KVM cpu info
[root@kvm01 ~]# lscpu
Architecture: x86_64
CPU op-mode(s): 32-bit, 64-bit
Byte Order: Little Endian
CPU(s): 6
On-line CPU(s) list: 0-5
Thread(s) per core: 1
Core(s) per socket: 6
Socket(s): 1
NUMA node(s): 1
Vendor ID: GenuineIntel
CPU family: 6
Model: 165
Model name: Intel(R) Core(TM) i7-10750H CPU @ 2.60GHz
Stepping: 2
CPU MHz: 2592.002
BogoMIPS: 5184.00
Virtualization: VT-x
Hypervisor vendor: KVM
Virtualization type: full
L1d cache: 32K
L1i cache: 32K
L2 cache: 256K
L3 cache: 12288K
NUMA node0 CPU(s): 0-5
Flags: fpu vme de pse tsc msr pae mce cx8 apic sep mtrr pge mca cmov pat pse36 clflush mmx fxsr sse sse2 ht syscall nx rdtscp lm constant_tsc rep_good nopl xtopology nonstop_tsc cpuid tsc_known_freq pni pclmulqdq vmx ssse3 cx16 pcid sse4_1 sse4_2 x2apic movbe popcnt aes xsave avx rdrand hypervisor lahf_lm abm 3dnowprefetch invpcid_single tpr_shadow flexpriority fsgsbase avx2 invpcid rdseed clflushopt md_clear flush_l1d arch_capabilities
[root@kvm01 ~]#
Next step is to check the running vm that we need to pin the cpu.
[root@kvm01 ~]# virsh --readonly list
Id Name State
-------------------------------
1 oel7-test-tem running
[root@kvm01 ~]#
Now we need to check vm is pinned to CPU or not , also using this virsh command which CPUs are allocated to the server VM.
[root@kvm01 ~]# virsh --readonly vcpuinfo oel7-test-tem --pretty
VCPU: 0
CPU: 0
State: running
CPU time: 68.0s
CPU Affinity: 0-5 (out of 6)
VCPU: 1
CPU: 2
State: running
CPU time: 49.2s
CPU Affinity: 0-5 (out of 6)
[root@kvm01 ~]#
As per this example, the virtual machine is configured with 2 vCPUs and both can span from thread/core 0 until thread/core 5 (out of 6); so, the virtual CPUs for this virtual machine are not pinned to physical threads/cores.
Configuring Hard Partitioning
To perform this CPU pinning we need to install olvm-vmcontrol utility
The recommended method is to install this olvm-control on OLVM hosted server. Please refer to my OLVM engine installation blog: https://chanaka-dbhelp.blogspot.com/2022/08/olvm-oracle-linux-virtualization.html , This article will help you to set up the engine.
########## install olvm-vmcontrol
Note: We need to installed this seperatly or in olvm engine hosted machine.
dnf install olvm-vmcontrol -y
[root@kvm02 ~]# dnf install olvm-vmcontrol -y
Oracle Linux 8 Gluster Appstream (x86_64) 37 kB/s | 3.2 kB 00:00
Oracle Linux 8 BaseOS Latest (x86_64) 65 kB/s | 3.6 kB 00:00
Oracle Linux 8 BaseOS Latest (x86_64) 9.4 MB/s | 50 MB 00:05
Oracle Linux 8 Application Stream (x86_64) 71 kB/s | 3.9 kB 00:00
Oracle Linux 8 Application Stream (x86_64) 9.1 MB/s | 38 MB 00:04
Latest oVirt 4.4 Release (x86_64) 33 kB/s | 3.0 kB 00:00
oVirt 4.4 Extra (x86_64) 49 kB/s | 3.0 kB 00:00
Latest Unbreakable Enterprise Kernel Release 6 for Oracle Linux 8 (x86_64) 42 kB/s | 3.0 kB 00:00
Oracle Linux 8 KVM Application Stream (x86_64) 45 kB/s | 3.2 kB 00:00
Oracle Linux 8 KVM Application Stream (x86_64) 1.7 MB/s | 318 kB 00:00
Dependencies resolved.
===================================================================================================================================================================
Package Architecture Version Repository Size
===================================================================================================================================================================
Installing:
olvm-vmcontrol noarch 4.4.1-1.1.el8 ovirt-4.4 36 k
Installing dependencies:
java-ovirt-engine-sdk4 noarch 4.4.6-1.el8 ovirt-4.4 4.4 M
Transaction Summary
===================================================================================================================================================================
Install 2 Packages
Total download size: 4.4 M
Installed size: 5.6 M
Downloading Packages:
(1/2): olvm-vmcontrol-4.4.1-1.1.el8.noarch.rpm 24 kB/s | 36 kB 00:01
(2/2): java-ovirt-engine-sdk4-4.4.6-1.el8.noarch.rpm 1.8 MB/s | 4.4 MB 00:02
-------------------------------------------------------------------------------------------------------------------------------------------------------------------
Total 1.8 MB/s | 4.4 MB 00:02
Running transaction check
Transaction check succeeded.
Running transaction test
Transaction test succeeded.
Running transaction
Preparing : 1/1
Installing : java-ovirt-engine-sdk4-4.4.6-1.el8.noarch 1/2
Installing : olvm-vmcontrol-4.4.1-1.1.el8.noarch 2/2
Running scriptlet: olvm-vmcontrol-4.4.1-1.1.el8.noarch 2/2
Verifying : java-ovirt-engine-sdk4-4.4.6-1.el8.noarch 1/2
Verifying : olvm-vmcontrol-4.4.1-1.1.el8.noarch 2/2
Installed:
java-ovirt-engine-sdk4-4.4.6-1.el8.noarch olvm-vmcontrol-4.4.1-1.1.el8.noarch
Complete!
[root@kvm02 ~]#
To execute this we need to export the OLVM password as an export parameter eg : export OLVMUTIL_PASS=Password
Execution error
I got the error while executing getcpu commands , This error was due to a certificate issue.
[root@kvm02 ~]# olvm-vmcontrol -m kvm02.local.com -u admin@internal -v oel7-test-tem -c getvcpu
Oracle Linux Virtualization Manager VM Control Utility 4.4.1-1.1
Password:
Error connecting to manager. Please check manager_hostname, username, password and keystore.
Full error: Failed to send request
Caused by: org.ovirt.engine.sdk4.Error: Failed to parse JSON response
Caused by: javax.net.ssl.SSLException: Unexpected error: java.security.InvalidAlgorithmParameterException: the trustAnchors parameter must be non-empty
Solution
There is an easy way to execute this without the certificate validation bypass by using the flag -f
-f InsecureConnection Append the -f flag to connect to the OLVM Manager without checking for Keystore file and JDK Version. The olvm-vmcontrol utility expects the keystore to be in jks format. So appending the -f flag is a workaround to creating a jks keystore.
[root@kvm02 SSL_CERT]# olvm-vmcontrol -m kvm02.local.com -u admin@internal -v oel7-test-tem -c getvcpu -f
Oracle Linux Virtualization Manager VM Control Utility 4.4.1-1.1
Password:
Connected to Oracle Linux Virtualization Manager 4.4.8.6-1.0.11.el8
Getting vcpu pinning ...
No CPU pinning is configured
[root@kvm02 SSL_CERT]#
This command returns the output for get and shows that VM hard partition is not configured
Allocation of CPUs
We can use olvm-vmcontrol -m kvm02.local.com -u admin@internal -v oel7-test-tem -c setvcpu -s 0,1 -e -f command to pin to cpu As per this example we are pinning to vm to use cpu 0 and cpu 1.
Note: Make sure to reboot the server, then only it will affect the CPU setting.
olvm-vmcontrol -m kvm02.local.com -u admin@internal -v oel7-test-tem -c setvcpu -s 0,1 -e -f
[root@kvm02 SSL_CERT]# olvm-vmcontrol -m kvm02.local.com -u admin@internal -v oel7-test-tem -c setvcpu -s 0,1 -e -f
Oracle Linux Virtualization Manager VM Control Utility 4.4.1-1.1
Connected to Oracle Linux Virtualization Manager 4.4.8.6-1.0.11.el8
Setting vcpu pinning ...
Setting VM's "Start Running On: Specific Host(s)" to host kvm01
Trying to pin virtual cpu # 0
Trying to pin virtual cpu # 1
Retrieving vcpu pinning to confirm it has been set...
No CPU pinning is configured
NOTE: if the VM is running you must now stop and then start the VM from the Oracle Linux Virtualization Manager in order for CPU pinning changes to take effect.
NOTE: a restart or a reboot of the VM is not sufficient to put CPU pinning changes into effect.
Validation
Execute getcpu command to validate the server cpu setting are correct.
olvm-vmcontrol -m kvm02.local.com -u admin@internal -v oel7-test-tem -c getvcpu -f -e
olvm-vmcontrol -m kvm02.local.com -u admin@internal -v oel7-test-tem -c getvcpu -f -e
[root@kvm02]# olvm-vmcontrol -m kvm02.local.com -u admin@internal -v oel7-test-tem -c getvcpu -f -e
Oracle Linux Virtualization Manager VM Control Utility 4.4.1-1.1
Connected to Oracle Linux Virtualization Manager 4.4.8.6-1.0.11.el8
Getting vcpu pinning ...
vcpu 0 pinned to cpuSet[0,1]
vcpu 1 pinned to cpuSet[0,1]
[root@kvm02 SSL_CERT]#
